産品簡介：
Product introduction:
Leetop_HLY-D5162F是基于英伟达AGX Orin核心闆研發的一款先進 的嵌入式人工智能計算機。該計算機为衆多終端設備提供高达200/275 TOPS的強大計算能力。搭载Jetson AGX Orin核心闆，Leetop_HLY- D5162F能夠充分發揮NVIDIA強大的AI软件堆棧、SDK以及软件平台的 優勢，成为一款高性能低功耗的嵌入式邊緣計算設備。
Leetop_HLY-D5162F的機箱設計符合标準的19英寸機架，使其在數據 中心、服務器機房等环境中得到廣泛應用。Leetop_HLY-D5162F機箱 采用堅固的金屬材料，提供卓越的結构強度和散热性能，同时滿足工業 标準的抗震和防静電要求。
Leetop_HLY-D5162F is an advanced product developed based on NVIDIA AGX Orin core board.of embedded artificial intelligence computers. This computer provides up to 200/275 for numerous end devices.The powerful computing power of TOPS. Equipped with Jetson AGX Orin core moudle, Leetop_HLY-D5162F can take full advantage of NVIDIA's powerful AI software stack, SDK and software platform to become a high- performance and low-power embedded edge computing device. The chassis design of Leetop_HLY-D5162F complies with standard 19-inch racks, making it widely used in data centers, server rooms and other environments. The Leetop_HLY-D5162F chassis is made of solid metal materials, providing excellent structural strength and heat dissipation performance while meeting industry standard anti-seismic and anti-static requirements.
産品規格 Product specification：
處理器模块 Processor module：
| spe cifications | ||
| Module | Jetson AGX Orin 32GB | Jetson AGX Orin 64GB |
AI Pe rformanc | 200TOPS | 275TOPS |
| CPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| GPU | 8 - core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L | 12-core NVIDIA Arm ® Cortex A7 8 AE v8 .2 6 4 - bit CPU 3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Video Encode | 1 x 4 K6 0 | 3 x 4 K3 0 | 6 x 1 0 8 0 p6 0 | 12x 1080p30 ( H. 2 6 5 ) 1 x 4 K6 0 | 2 x 4 K3 0 | 5 x 1 0 8 0 p6 0 | 11x 1080p30 (H.264 | 2x 4K60 4x 4K30 8x 1080p60 16x 1080p30 (H.265) 2x 4K60 4x 4K30 7x 1080p60 15x 1080p30 (H.264) |
| V ideo Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Power | 15W - 40W | 15W - 60W |
産品規格 ：
Product specification ：
| Feature | Sp ecification |
| Module Com pat ibilit y | Jetson AGX Orin |
| Display | 1x DP |
| Et hernet | 1x Gigabit Ethernet (10M/100M/1000M) 4x10G(10M/100M/1000M) |
| USB | 4x USB 3.2Type A (Integrated USB 2.0) |
| Function Key | 1x Power key; |
| AC | power interface |
| Project | Specification |
| Input Voltage | 100~240V(3A) A C Input |
| Load capacity | Above 90W |
| Dimensions (W×D ×H) | 490x257x44.5(mm) |
| Operating Temperature | -25℃- 70℃ |
St orage Temperat ure Hu midity | -25 ℃ -65 ℃ 10% -90% Non condensation environmen |
| Weight | KG |
尺寸示意图：
Dimensional diagram：

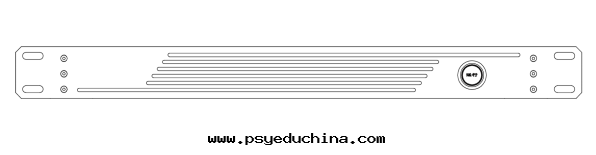

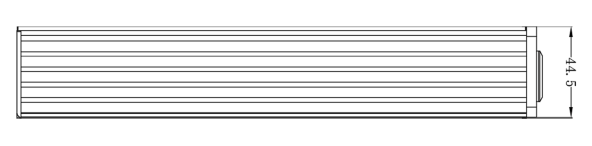

| 正視图 Front view | 左視图 Left view |
|
|

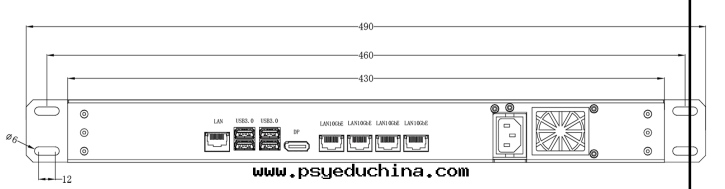

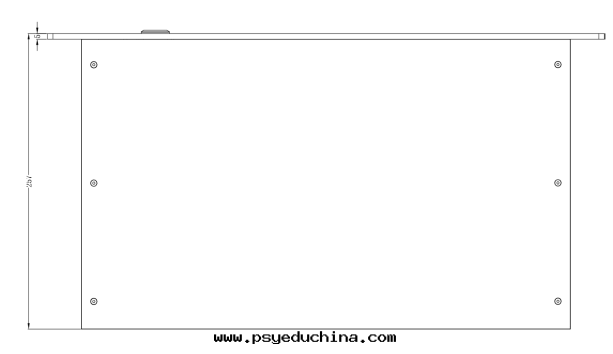

| 俯視图 Top view | 後視图 Rear view |
|
|
