産品簡介：
Product introduction:
Leetop_ALP_608_F是基于英伟达Orin NANO/Orin NX 核心板研發的一 款嵌入式人工智能计算机， 能夠为衆多終端設備賦予高达20/40/70/ 100TOPS的计算力。 Jetson Orin NANO/Orin NX 可以和NVIDIA強大的AI 软件堆栈/SDK 及软件平台相結合，作为高性能低功耗的嵌入式邊緣计算設備 ，主要應用于制造、物流、零售、服務、农業、智慧城市、醫疗保健、生命 科學等領域的先進人工智能机器人、邊緣檢測設備和A I應用场景. Leetop_ ALP_608_F提供快速的主动散热設计， 可以滿足抗震防静電等工業标準。 同 时Leetop_ALP_608_F接口豐富性價比高。
Leetop_ ALP_ 608_ F is an embedded artificial intelligence computer developed based on the NVIDIA Orin NANO/Orin NX core module, which can provide up to 20/40/70/100 TOPS of computing power to numerous terminal devices. Jetson Orin NANO/Orin NX can be combined with NVIDIA's powerful AI software stack/SDK and software platform. As a high-performance and low-power embedded edge computing device, it is mainly used in advanced artificial intelligence robots, edge detection devices and AI application scenarios in manufacturing, logistics, retail, service, agriculture, smart city, health care, life science and other fields Leetop_ ALP_ 608_ F provides a fast active heat dissipation design that can meet industrial standards such as earthquake resistance and anti-static. Meanwhile, Leetop_ ALP_ 608_ F interface is rich and cost-effective.
産品規格 Product specification：
處理器模块 Processor module：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm ® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Performance | 20TOPS | 40TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x4K30 (H.265) 5x1080p60 (H.265) 11x1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
産品規格 :
Product specification：
| Feature | Specification |
| Display | 1x DP |
| Ethernet | 2x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Type A (Integrated USB 2.0) 1x USB 2.0+3.2 Type C |
| Camera | 2xCSI Camera |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x 3.0V RTC |
| CAN | 1xCAN (FD) |
| Audio | 1x3.5 Audio Jack; 2X MIC; 2X SPEAKER; 1X SPEAKER FEEDBACK |
| Function CON | 2X IIC; 1X SPI; 7X IO 3.3V; 2x UART; 1X DEBUG; 1X POWER; 1X RESET; 1X RECOVERY |
| DC | Power interface |
産品規格
Product specification：
| Project | Spec |
| Input Voltage | +9-- +20V(MAX 60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 126x107x39.5(mm) |
| Operating Temperature | -25℃-65℃ |
Storage Temperature Humidity | -25℃-65℃ 10% -90% non condensation environment |
| Weight | 0.6546KG |
尺寸示意图：
Schematic diagram of dimensions：

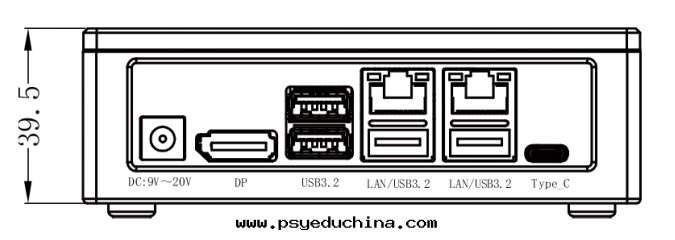

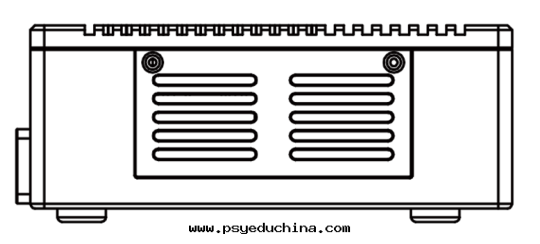

| 正视图 Front view | 左视图 Left view |
 |  |

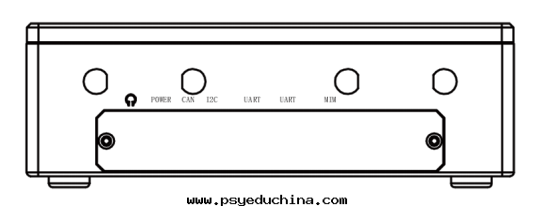

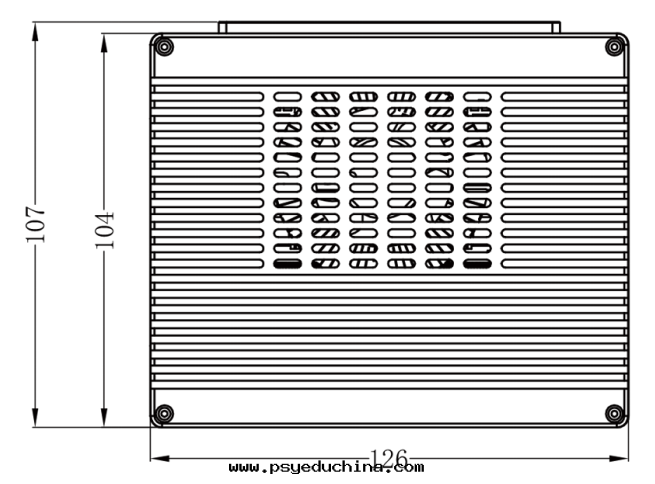

| 俯视图 Up view | 後 视 图 Rear view |
 |  |
