Product features
Product function
産品簡介：
Product introduction:
Leetop_ALP_682_F是基于英伟达AGX Orin 核心闆研發的一款嵌入式人工 智能計算機， 能夠为衆多終端設備賦予高达200/275TOPS的計算力。 Jetson AGX Orin 可以和NVIDIA強大的AI软件堆棧/SDK及软件平台相結合，作为高性 能低功耗的嵌入式邊緣計算設備，主要應用于制造、物流、零售、服務、農業、 智慧城市、醫療保健、生命科學等領域的先進人工智能機器人、邊緣檢測設備和 A I應用场景。Leetop_ALP_682_F提供快速的主動散热設計， 可以滿足抗震防 静電等工業标準。 同时Leetop_ALP_682_F接口豐富性價比高。
Leetop_ALP_682_F is an embedded artificial intelligence computer developed based on NVIDIA AGX Orin core module, which can provide computing power of up to 200/275TOPS to many terminal devices. Jetson AGX Orin can be combined with NVIDIA's powerful AI software stack/SDK and software platform. As a high-performance and low-power embedded edge computing device, it is mainly used in manufacturing, logistics, retail, services, agriculture, smart cities, and healthcare. Advanced artificial intelligence robots, edge detection equipment and AI application scenarios in fields such as , life sciences and other fields. Leetop_ALP_682_F provides fast active heat dissipation design and can meet industrial standards such as shock resistance and anti-static. At the same time, Leetop_ALP_682_F has rich interfaces and is cost-effective.
産品規格 Productspecification：
處理器模块 Processor module：
| specifications | ||
| Module | Jetson AGXOrin 32GB | Jetson AGX Orin 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| CPU | 1792-core NVIDIA Ampere GPU with56 Tensor Cores | 2048-core NVIDlA Ampere GPU with64 Tensor Cores |
| GPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 | 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) | 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265 |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Power | 15W - 40W | 15W - 60W |
産品規格 ：
Product specification：
| Feature | Specification |
| Module Compatibility | Jetson AGX Orin |
| Display | 1x DP |
| Ethernet | 1x Gigabit Ethernet (10M/100M/1000M) |
| 4x10G(10M/100M/1000M) | |
| USB | 4x USB 3.2Type A (Integrated USB 2.0) 1x USB2.0+ 3.2 (TYPE C) |
| Audio | 1XAudio |
| TF_Card | 1X TF_Card |
| SIM_Card | 1x SIM_Card |
| Function Key | 1x Power key; 1x Reset key; 1x Recovery key; |
| DC | power interface |
| Project | Specification |
| Input Voltage | +12-36V(120W) DC Input |
| Load capacity | Above 90W |
| Dimensions (W×D ×H) | 224x164x66.35(mm) |
| Operating Temperature | -25℃- 70℃ |
Storage Temperature Humidity | -25℃ -65℃ 10% -90% Non condensation environment |
| Weight | 2.6KG |
尺寸示意图：
Schematic diagram of dimensions：

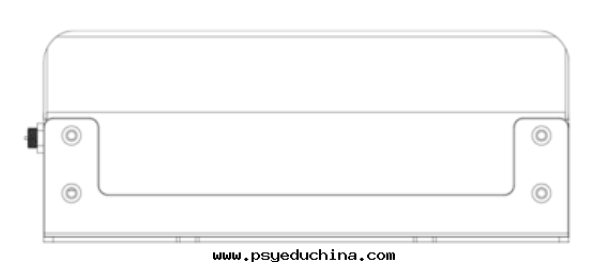

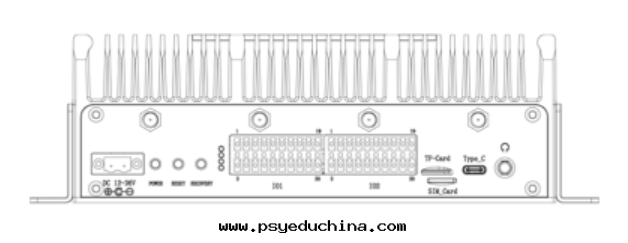

| 正視图 Front view | 左視图 Left view |
 |  |

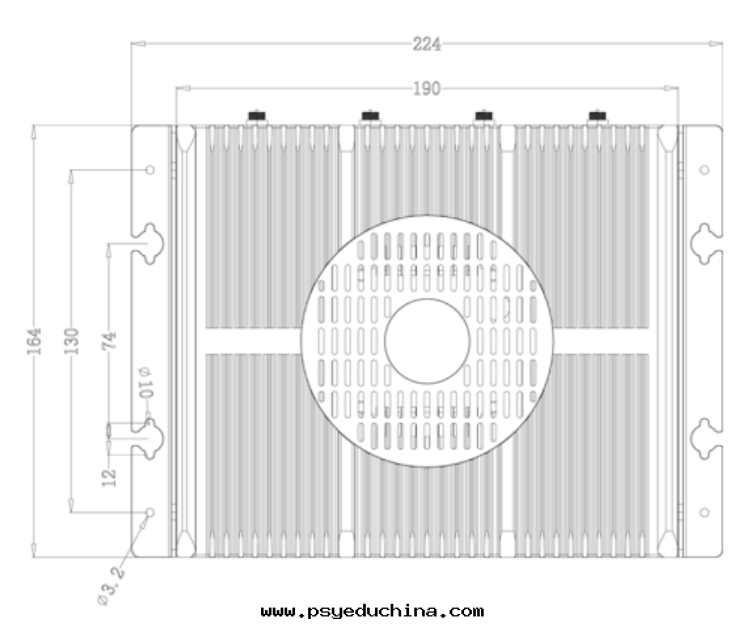

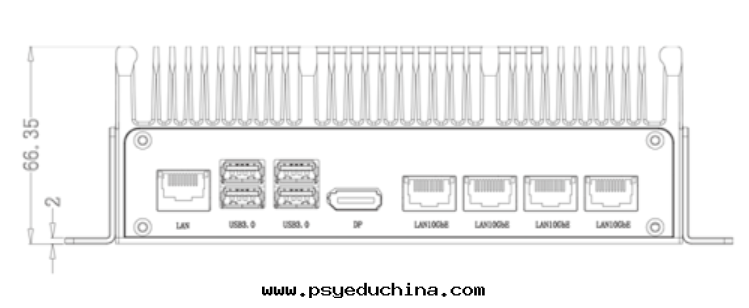

| 俯視图 Up view | 後視图 Rear view |
 |  |
