産品特點
産品功能
産品簡介
Product Introduction

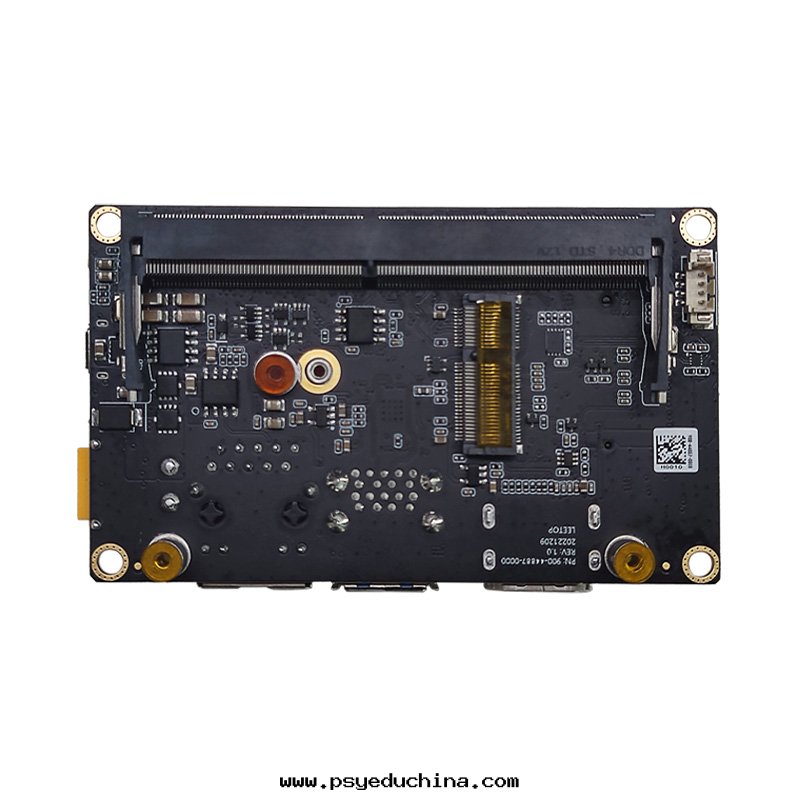

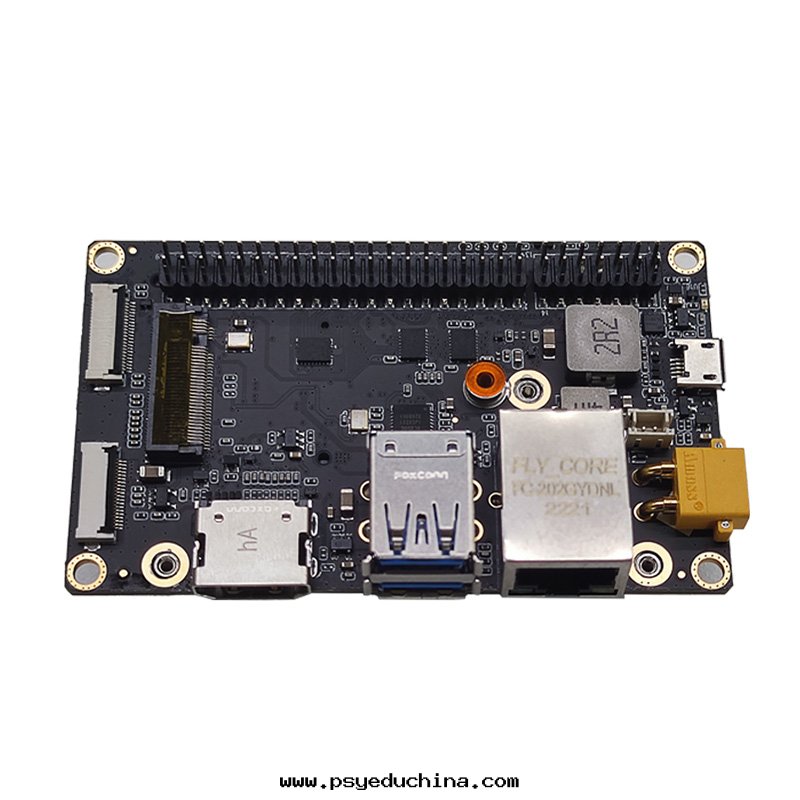

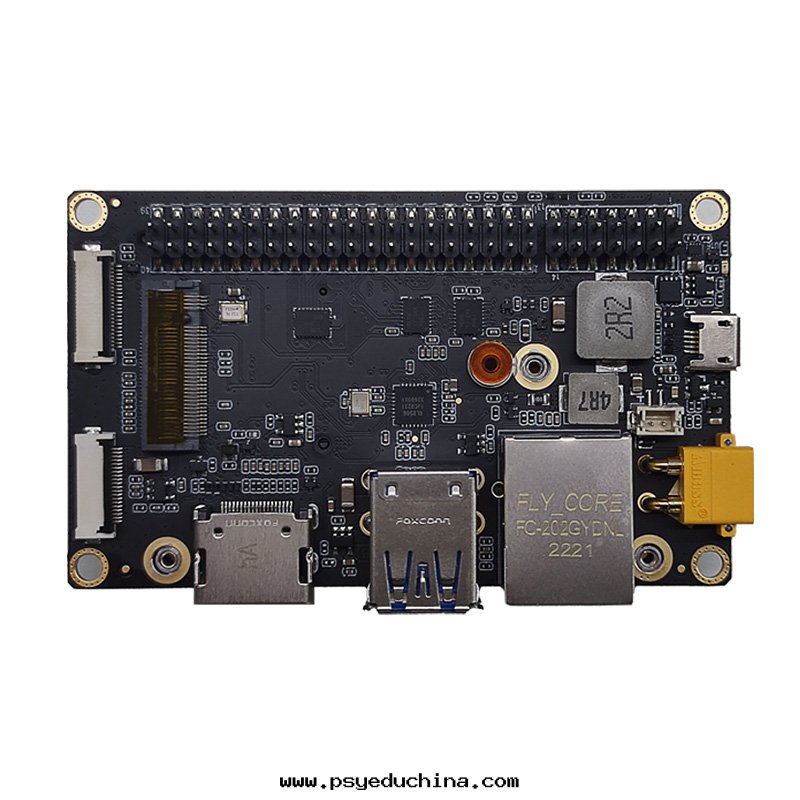

Leetop-A603是基于英伟达 Orin NX 核心板研發的一款嵌入式人工智能计算机，能夠为衆多終端設備賦予高达70/100TOPS(INT8)的计算力。Leetop-A603提供快速的主动散热設计，可以滿足抗震防静電等工業标準。同时Leetop-A603接口豐富，性價比高。
Leetop-A603 is an embedded AI computer based on Nvidia's Orin NX core board, capable of delivering up to 70/100TOPS(INT8) computing power to numerous terminal devices. Leetop-A603 provides fast active cooling design to meet industry standards such as earthquake resistance and anti-static. At the same time, Leetop-A603 has rich interfaces and high cost performance.
産品規格 Product Specifications
處理器模组 Processor module
| specifications | ||
| Module | Nvidia Jetson Orin NX 8GB | Nvidia Jetson Orin NX 16GB |
AI Performance | 70 TOPS | 100 TOPS |
| CPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| GPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/ | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe | — (Supports external NVMe) |
Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Power | 10W - 20W | 10W - 25W |
接口 I/O interface
| 接口 interface | 規格/Specifications |
| Display | 1 x HDMI |
| USB | 2x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
| Network | 1x GigabitEthernet (10/100/1000) |
| M.2 KEY E | 1x M.2 KEY E Interface(NVMe SSD)2242 |
| CAN | 1 x CAN |
| Camera | 1x CSI CAMERA |
| M.2 KEY E PCIE | 1x PCIE 2230 SIZ |
| I2S | 1x I2S(3.3V Level) |
| Function Key | 1× Power KEY, 1× Reset KEY, 1× Recovery KEY （Button） |
供 電 Power Supply
| Power Supply | Spec |
| Input Voltage | Wide input 9-20V DC Input @ 7 |
| ypical consumption | up to 45W |
結 構 Mechanical
| Mechanical | Spec |
| Dimensions (LxW) | 87 x 52（mm） |
| Weight | 0.1Kg |
环 境 Enviromental
| Environmental | Spec |
| Operating Temperature | -25℃~65℃ |
Storage Temperature | -20℃ ~ +60℃ |
Storage Humidity | 10%-90% non-condensing |
