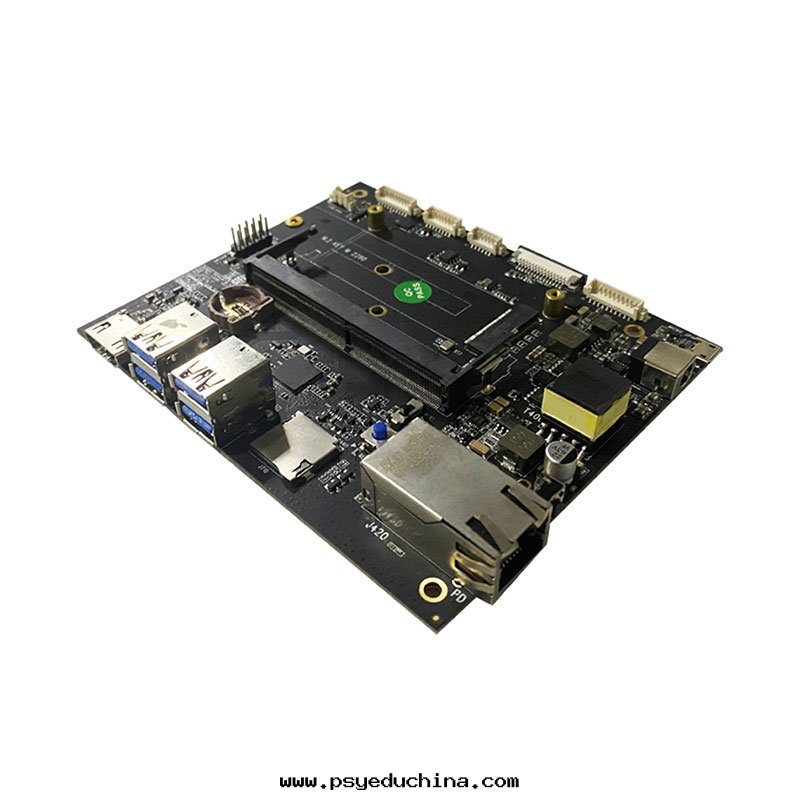

Leetop-A201是一个高性能，接口豐富的NVIDIA® Jetson Nano载板。A201载板提供了HDMI2.0，千兆以太网，USB3.0，USB 2.0（W / OTG功能），USB WIFI MODE ,M.2 WIFI/BT,M.2 KEY E PCIE固态硬盤，CSI CAMERA, SATA, Mini-PCIe/mSATA，RS232，SIM Card，GPIO,I2C,I2S風扇等豐富的外围接口。
1. 概述
A201是一个高性能，接口豐富的NVIDIA® Jetson Nano载板。A201载板提供了HDMI2.0，千兆以太网，USB3.0，USB 2.0（W / OTG功能），USB WIFI MODE ,M.2 WIFI/BT,M.2 KEY E PCIE固态硬盤，CSI CAMERA, SATA, Mini-PCIe/mSATA，RS232，SIM Card，GPIO,I2C,I2S風扇等豐富的外围接口。
| Feature | A201 Carrier for NVIDIA ® Jetson™ Nano |
| Module Compatibility | NVIDIA ® Jetson™ Nano |
| PCB Size / Overall Size | 125mm x 105mm (4.92” x 4.13”) |
| Display | 1x HDMI |
| Ethernet | 1x Gigabit Ethernet (10/100/1000M) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0 Type A/1x USB 2.0 OTG Micro-AB |
| CSI CAERAA | 1x CSI CAMERA |
| USB WIFI MODEL | 1X USB2.0 WIFI |
| M.2 KEY M PCIE | 1X PCIE 2280 SIZE |
| I2S | 2x I2S(3.3V Level)_ |
| SPI | 1x SPI(3.3V Level)_ |
| I2C | 1x I2C(3.3V Level)_ |
| Misc. | 1x UART (+3.3V I/O) 2x GPIO |
| Power Requirements | +12V~19V DC Input @ 3A |
| POE class 4 | |
| Operating Temperature | -25° to +65° |
| Weight | g |
| Accessories | Cables |
| Warranty and Support | 1 Year Warranty and Free Support |
