産品簡介：
Product introduction:
Leetop_SUBKIT_608_Orin_NX是基于英伟达Orin NX 核心板研發的一款 嵌入式人工智能计算机， 能夠为衆多終端設備賦予高达70/100TOPS的计算力 。 Jetsoon Orin NX 可以和NVIDIA強大的AI 软件堆栈/SDK 及软件平台相結合 ，作为高性能低功耗的嵌入式邊緣计算設備，主要應用于制造、物流、零售、 服務、农業、智慧城市、醫疗保健、生命科學等領域的先進人工智能机器人、 邊緣檢測設備和A I應用场景. Leetop_SUBKIT_608_ Orin_NX 提供快速的主动 散热設计， 可以滿足抗震防静電等工業标準。 同时 Leetop_SUBKIT_608_Orin _NX接口豐富性價比高。
Leetop_ SUBKIT_ 608_ Orin_ NX is an embedded artificial intelligence computer developed based on the NVIDIA Orin NX core module, which can provide up to 70/100TOPS of computing power to numerous terminal devices. Jetson Orin NX can be combined with NVIDIA's powerful AI software stack/SDK and software platform. As a high- performance and low-power embedded edge computing device, it is mainly used in advanced AI robots, edge detection devices and AI application scenarios in manufacturing, logistics, retail, service, agriculture, smart cities, healthcare, life sciences and other fields Leetop_ SUBKIT_ 608_ Orin_ NX provides a fast active cooling design that can meet industrial standards such as seismic and anti-static performance. meanwhile Leetop_ SUBKIT_ 608_ Orin_ NX interface is rich andcost- effective.
産品規格 Product specification：
處理器模块 Processor module：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm ® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
産品規格:
Product specification：
| Feature | Specification |
| Module Compatibility | Jetson Orin NX |
| Display | 1x DP |
| Ethernet | 2x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Type A (Integrated USB 2.0) 1x USB 2.0+3.2 Type C |
| M.2 KEY M | 1xM.2KEY M(SSD) Interface 1xM.2KEY E(WIFI) Interface 1xM.2 KEY B(4G/5G) Interface |
| Camera | 2xCSI Camera |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x 3.0V RTC |
| CAN | 1xCAN (FD) |
| Audio | 1x3.5 Audio Jack; 2X MIC; 2X SPEAKER; 1X SPEAKER FEEDBACK |
| Function CON | 2X IIC; 1X SPI; 7X IO 3.3V; 2x UART; 1X DEBUG; 1X POWER; 1X RESET; 1X RECOVERY |
| DC | Power interface |
産品規格:
Product specification：
| Project | Spec |
| Input Voltage | +9-- +20V(MAX 60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 101.5x96.2x31.1(mm) |
| Operating Temperature | -25℃-65℃ |
Storage Temperature Humidity | -25℃-65℃ 10% -90% non condensation environment |
| Weight | 0.2 KG |

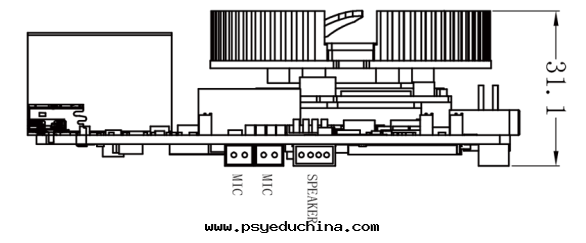

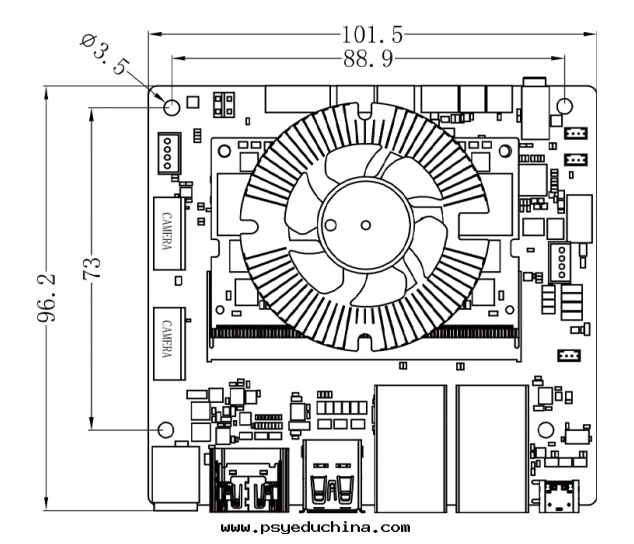

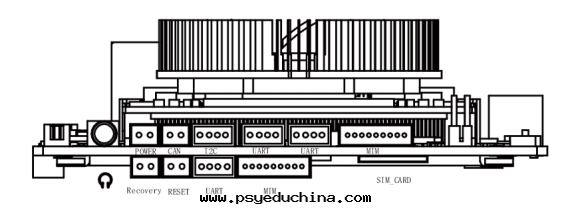

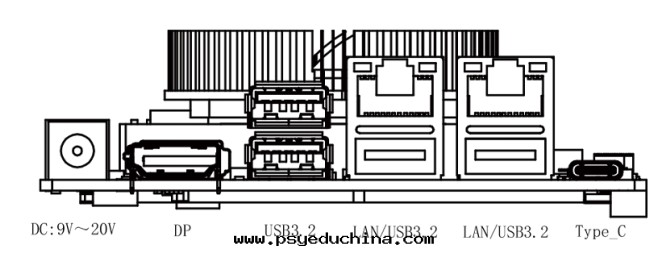

尺寸示意图：
Schematic diagram of dimensions：
| 正视图 Front view | 左视图 Left view |
 |  |
| 俯视图 Up view | 後 视 图 Rear view |
 |  |
