産品特點
産品功能
産品簡介：
Product introduction:
Leetop_SUBKIT_610_Orin_NX是基于英伟达Orin NX核心闆研發的 款嵌入式人工智能計算機，能夠为衆多終端設備賦予高达70/100TOPS的計算力。Jetson Orin NX可以和NVIDIA強大的AI软件堆棧/SDK及软件平台相結 合，作为高性能低功耗的嵌入式邊緣計算設備，主要應用于制造、物流、零 售、服務、農業、智慧城市、醫療保健、生命科學等領域的先進人工智能機器 人、邊緣檢測設備和AI應用场景。 Leetop_SUBKIT_610_Orin_NX提供快速的 主動散热設計，可以滿足抗震防静電等工業标準。同时
Leetop_SUBKIT_610_Orin_NX接口豐富性價比高。
Leetop_SUBKIT_610_Orin_NX an embedded artificial intelligence computer based on NVIDIA's Orin NX core module, which can give up to 70/100TOPS computing to many terminal devices Force. Jetson Orin NX can be combined with NVIDIA's powerful AI software stack/ SDK and software platform as a high-performance and low-power embedded edge computing device, mainly used in manufacturing, logistics, retail, services, agriculture, smart city, healthcare, life sciences and other fields of advanced artificial intelligence robots, edge detection equipment and AI application scenarios. Leetop_ SUBKIT_610_Orin_NX provides a fast active heat dissipation design that can meet industry standards such as anti-vibration and anti-static . meantime Leetop_SUBKIT_610_Orin_NX interfaces are abundant and cost-effective.
産品規格 Product specification：
處理器模块 Processor module：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm ® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
| Project | Spec |
| Input Voltage | +10---+24V(60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ×H) | 104.9x100.08x33.05 (mm) |
| Operating Temperature | -25℃-70℃ |
Storage Temperature /Humidity | -25℃-65℃ 10%-90% Non Condensing Environment |
| Weight | 0.18615KG |
| Interface | Specification |
| Network | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 3X USB(CONNECT) 1x USB2.0 (TYPE C) |
| Video output | 2× HDMI |
| Function key | 1x Power key; 1xRcecovery key ; 1xReset key |
尺寸示意图 ：
Schematic diagram of dimensions：

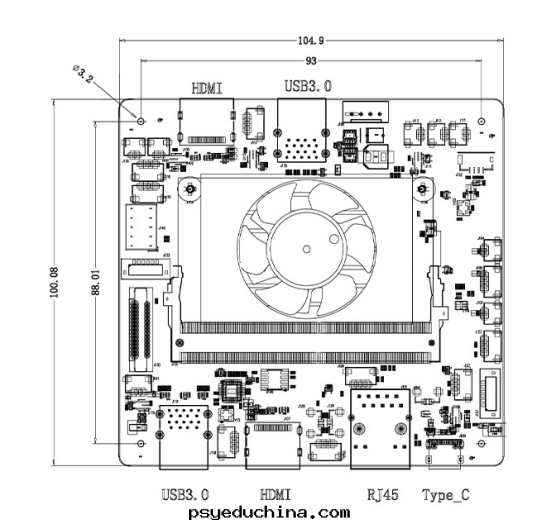

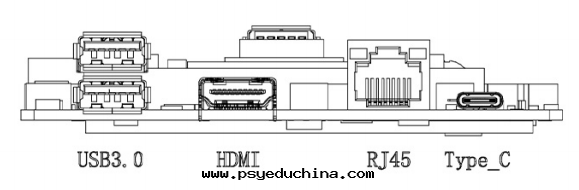

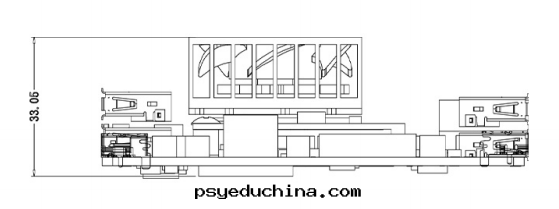

| 正視图 Front view | 左視图 Left view |
 |  |

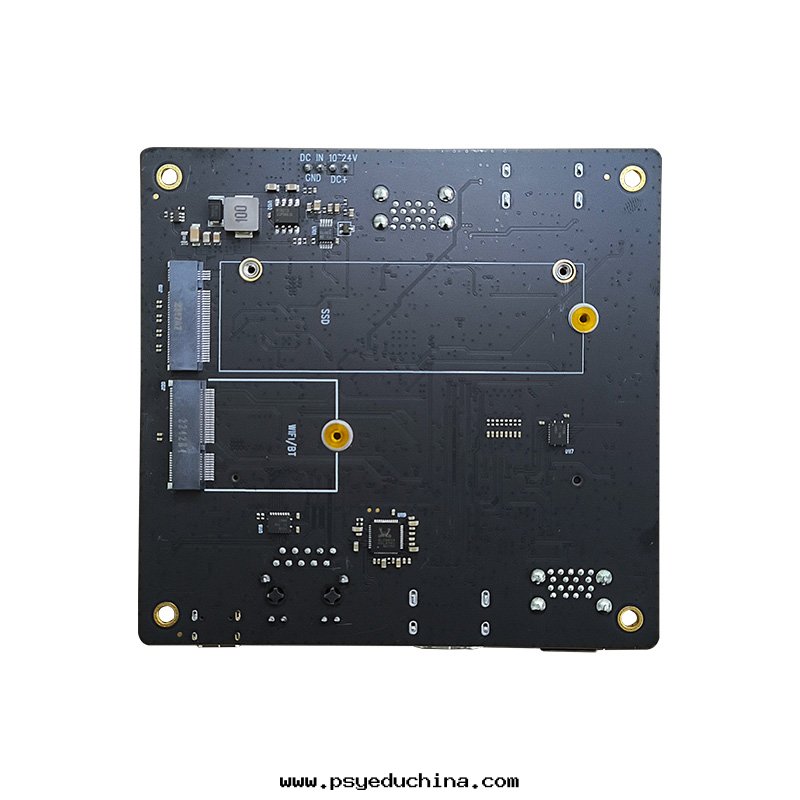

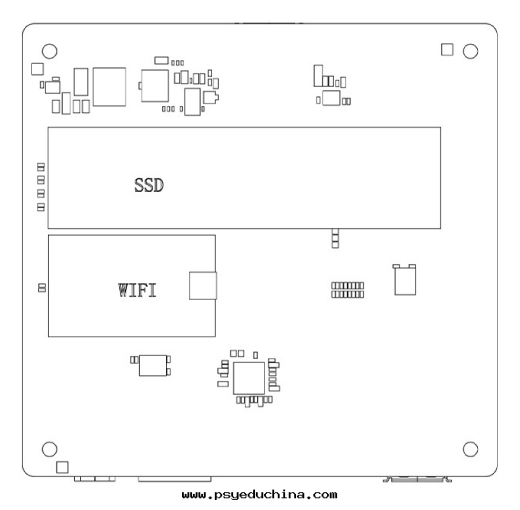

| 俯視图 Up view | 底部图 Bottom view |
 |  |
