産品簡介：
Product introduction:
Leetop_LHR-D5241F是一款高性能整機，采用了Leetop_ B100载闆設計，並搭载了強大的RDK X3模組，擁有高达5 Tops的推理算力。搭载4核ARM Cortex®A53處理器，为用戶提 供卓越的計算性能。支持可拆卸式外殼串口調試，适用于各種調 試场景。此外，Leetop_LHR-D5241F配備了4个USB 3.0接口和 2个USB 2.0接口，提供多樣化的外設連接選项，滿足各類场景的 使用需求。同时，它還提供主動散热，滿足用戶的散热需求。
Leetop_LHR-D5241F is a high-performance machine that adopts the Leetop_B100 carrier board design and is equipped with the powerful RDK X3 module, with an inference computing power of up to 5 Tops. Equipped with an 4-core ARM Cortex®A53 processor, it provides users with excellent computing performance. Supports detachable housing serial port debugging, suitable for various debugging scenarios. In addition, Leetop_LHR-D5241F is equipped with 4 USB 3.0 interfaces and 2 USB 2.0 interfaces, providing a variety of peripheral connection options to meet the needs of various scenarios. At the same time, it also provides active cooling to meet users’ cooling needs.
産品規格 ：
Product specification ：
| Project | Sp ecification |
| Module Compa tibility | RDK X3 Moudle |
| Displa y | 1x HDMI |
| Et hernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 2x USB 2.0(1xDebug;1xMicro USB |
| Audio | 1x Audio jack |
| Camera | 3x CSI Camera |
| DC | Power interface |
| Input Voltage | 12V(MAX 35W) DC Input |
| Load capacity | Above 35W |
| Structure size | 116x88.7x44.6(mm) |
| Operating Temperature | -20℃-60℃ |
産品規格 Product specification：
處理器模块 Processor module：
RDK X3 Moudle 主要包含四核Cortex®A53處理器、5Tops算力、最高4GB內存且支持4K@60幀視頻編解；主要接口包括 HDMI、千兆以太网、USB 3.0、USB2.0、MIPI CSI、UART Debug、TF 卡接口等。
模組搭载双頻 2.4/5.0GHz 無線局域网和藍牙 4.2 模块，單闆上已具備 PCB 天線，同时也可以搭配外部天線套件使用，能夠實現無線連接，降低用戶開發和 測試成本，縮短上市时间。
RDK X3 Module 可選的闆载 RAM 容量包括 2GB、4GB。
RDK X3 Moudle mainly includes a quad-core Cortex® A53 processor, 5Tops computing power, up to 4GB memory and supports 4K@60 frame video encoding and decoding; the main interfaces include HDMI, Gigabit Ethernet, USB 3.0, USB2.0, MIPI CSI, UART Debug, TF card interface, etc.
The module is equipped with dual-band 2.4/5.0GHz wireless LAN and Bluetooth 4.2 modules. The board already has a PCB antenna and can also be used with an external antenna kit to achieve wireless connections, reduce user development and testing costs, and shorten time to market.
The optional onboard RAM capacities of RDK X3 Module include 2GB and 4GB.
尺寸示意图：
Dimensional diagram：

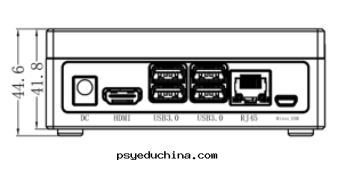

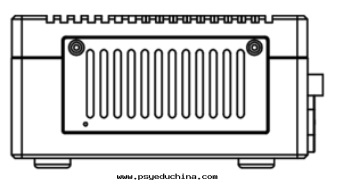

| 正視图 Front view | 左視图 Left view |
 |  |

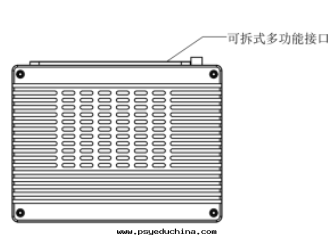

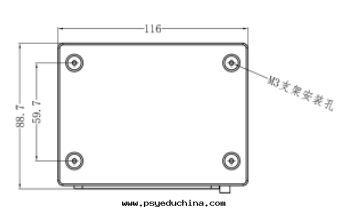

| 俯視图 Top view | 底部視图 Bottom view |
 |  |
